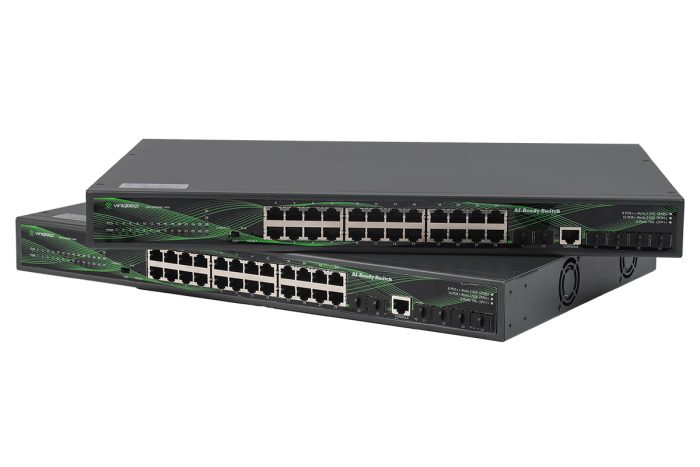

AIM-24MG6XF-UPoE is a Layer 3 managed PoE++ switch, equipped with 24 100M/1000M/2.5Gbps Ethernet electrical interfaces, 6 10Gbps SFP+ fiber optic interfaces and one Console port. It supports the IEEE802.3af/at/bt standards and can serve as an Ethernet Power Sourcing Equipment (PSE). Ports 1-8 have the PoE++ power supply function, and ports 9-24 have the PoE+ power supply function. It can automatically detect and identify the powered devices that comply with the standards and supply power to them through network cables.
AIM-24MG6XF-UPoE SPECIFICATION | |
Interface | 8 x 1G/2.5G PoE RJ45 (Support POE/POE+/POE++) |
16 x 1G/2.5G POE RJ45 (Support POE/POE+) | |
6 x SFP+ 10G Port（Compatible with Gigabit） | |
Management Port | 1 x Console |
Factory Default | 1 x Reset Button |
PoE Standard | IEEE802.3af/at/bt Standard PoE (Support 802.3bt4 on Port 1-8) |
Maximum PoE Output | 90W |
Total Power | Total PoE Power Output 750W，Power Supply 800W |
PoE Pin | 1/2(+)，3/6(-)； |
Switch Capacity | 598Gbps |
Packet Forwarding | 222Mpps |
Working Temperature | 0~45°C |
Storage Temperature | -40~70°C |
Operating Humidity | 10%～90% No condensation |
Storage Humidity | 5%～95% No condensation |
Dimension | 440(L)×285(W)×45(H)mm |
Weight | <6Kg |
Lightning Protection | 6KV |
Input voltage | AC:100～240V/50～60Hz |
Power Consumption | <800W Maximum Load |
SKU | AIM-24MG6XF-UPoE |
