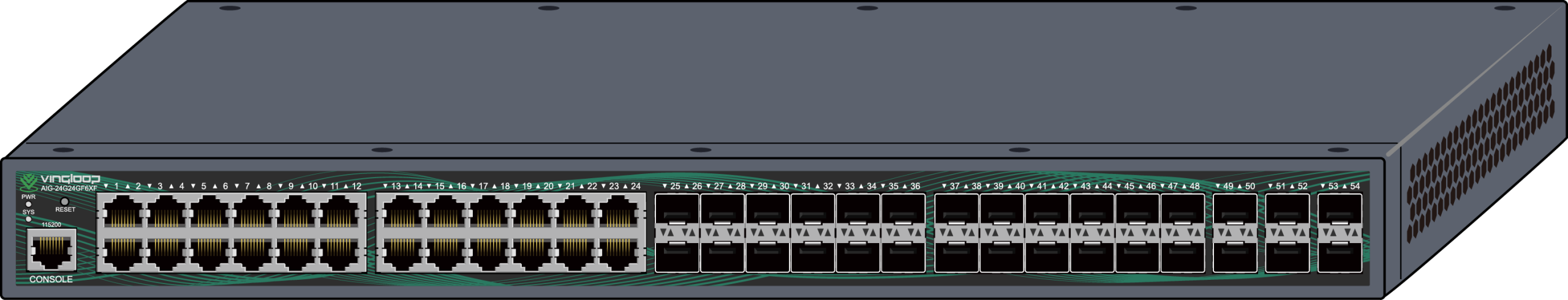

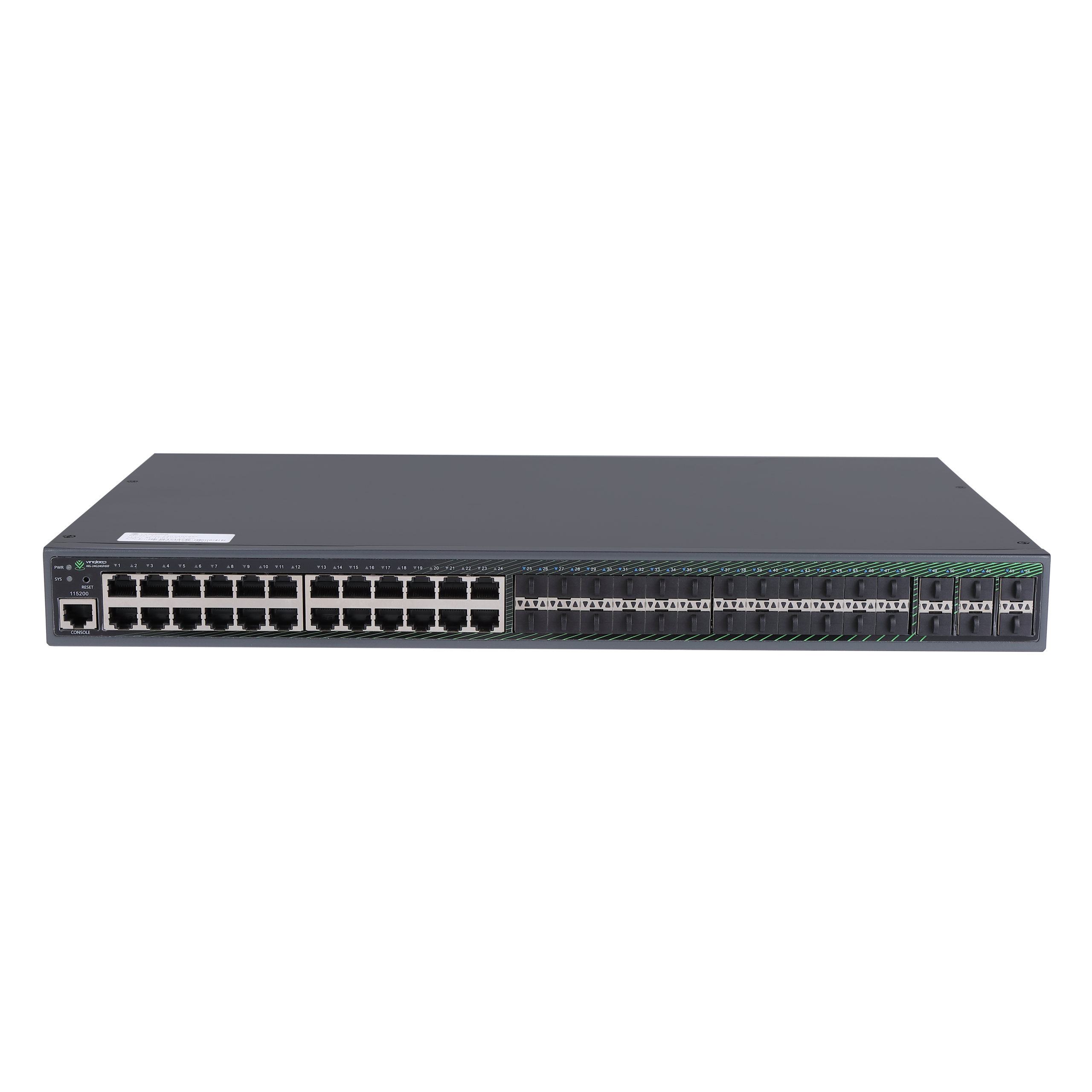

AIG-24G24GF6XF is an L3 managed switch, featuring 24 100Mbps/1Gbps Ethernet electrical ports, 24 100Mbps/1Gbps SFP fiber ports , 6 10Gbps SFP+ fiber ports, and one Console port. It has a scalable redundant power supply design. Adopting store-and-forward technology combined with dynamic memory allocation, it ensures effective bandwidth allocation to each port. It supports full Layer 3 switching functions, offering comprehensive security policies, complete QoS (Quality of Service) policies, and rich VLAN (Virtual Local Area Network) functions. With easy management and maintenance, it meets the networking and access requirements of enterprises, residential communities, hotels, office networks, and campus networks. The switch has a built-in AI intelligent module, which can interact with the holographic AI platform to realize the following featured functions:
AIG-24G24GF6XF SPECIFICATION | |
Interface | 24个100M/1Gbps RJ45 |
24个100M/1Gpbs SFP Port | |
6个1Gbps SFP+ Port (Gigabit compatible) | |
Management Port | 1 x Console |
Factory Default | 1 x Reset Button |
Redundant power supply | Expandable redundant power supply |
Switch Capacity | 598Gbps |
Packet Forwarding | 222Mpps |
Working Temperature | 0~45°C |
Storage Temperature | -40~70°C |
Operating Humidity | 10%～90% No condensation |
Storage Humidity | 5%～95% No condensation |
Dimension | 440(L)×285(W)×45(H)mm |
Weight | <5Kg |
Lightning Protection | 6KV |
Input voltage | AC:100～240V/50～60Hz |
Power Consumption | <72W Maximum Load |
SKU | AIG-24G24GF6XF |
