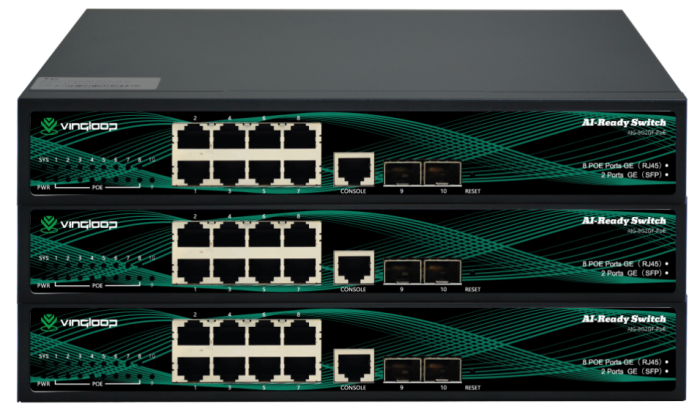

AIG-8G2GF-PoE is an L2 managed PoE+ switch, featuring 8 100M/1000Mbps Ethernet electrical ports, 2 1Gbps SFP fiber ports, and one Console port. It supports the IEEE802.3af/at standards and can act as a Power over Ethernet (PoE) sourcing equipment, providing a total power output of 125W. It can automatically detect and identify standard-compliant powered devices (PDs) and supply power to them via network cables.
AIG-8G2GF-PoE SPECIFICATION | |
Interface | 8 x 1G PoE RJ45 (Support POE/POE+) |
2 x SFP 1G Port | |
Management Port | 1 x Console |
Factory Default | 1 x Reset Button |
PoE Standard | IEEE802.3af/at Standard PoE |
Maximum PoE Output | 30W |
Total PoE Power | 125W |
PoE Pin | 1/2(+)，3/6(-)； |
Switch Capacity | 20Gbps |
Packet Forwarding | 14.8Mpps |
Working Temperature | 0~50°C |
Storage Temperature | -40~70°C |
Operating Humidity | 10%～90% No condensation |
Storage Humidity | 5%～95% No condensation |
Dimension | 270(L) * 180(W) * 44(H)mm |
Weight | <2.5Kg |
Lightning Protection | 6KV |
Input voltage | AC:100～240V/50～60Hz |
Power Consumption | <150W Maximum Load |
SKU | AIG-8G2GF-PoE |
